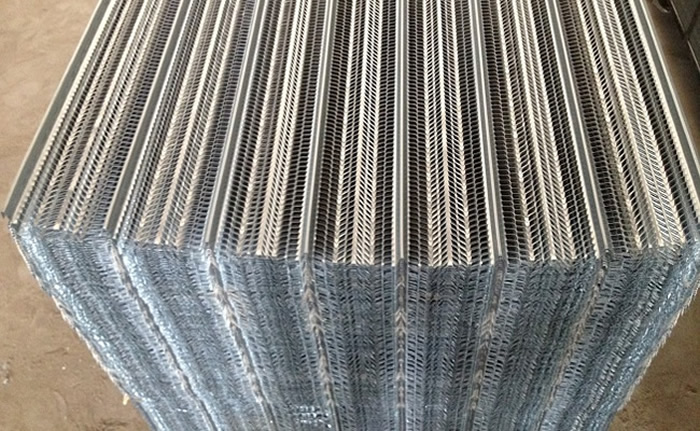

Description: 3/4’’ High rib lath:(Metal Rib/Stay form)
Expanded High Metal Rib lath is widely used as a plastering backing on ceilings, walls, stud partitions; rib lath is also ideal for refurbishing damaged or aged masonry walls when a key for rendering is not firm due to disintegration of softening of the wall face. With stronger ribs, it is widely applied to concrete structure of projects, it has better stress strength and free shapes, mostly used as concrete permanent dismantle free template for civil engineering
| Code | Rib depth | Rib distance | Weight | Sheet size | Packing |
| MG-HR | 3/4" | 98mm | 11.9bls | 27" x97" | 250pcs/Plt |
| MG-HR3 | 19~20mm | 100mm | 200mm width | Pallet | |
| MG-HR4 | 19~20mm | 100mm | 300mm width | Pallet | |
| MG-HR5 | 19~20mm | 100mm | 400mm width | Pallet | |
| MG-HR6 | 19~20mm | 100mm | 500mm width | Pallet | |
| MG-HR7 | 19~20mm | 100mm | 600mm width | Pallet | |
| MG-HR8 | 19~20mm | 100mm | 700mm width | Pallet |
