Description:

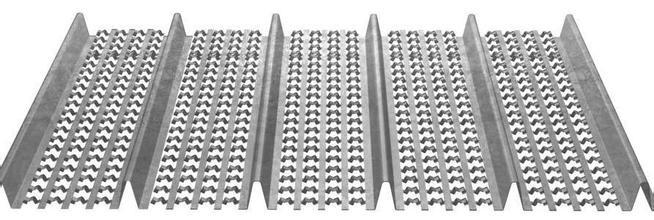

High Ribbed Formwork/High Rib mesh is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in building construction to form retaining walls, columns, stop ends, construction joints and used to support slab flooring.
Specifications:
| Code | Rib height | Rib Distance | Thickness | Width | Length | Packing |
| MG-HR 03 | 19~20mm | 89~90mm | 0.3mm | 450mm | 2000~ 3000mm | Pallet |
| MG-HR 04 | 19~20mm | 89~90mm | 0.4mm | Pallet | ||
| MG-HR 05 | 19~20mm | 89~90mm | 0.5mm | Pallet | ||
| MG-HR 06 | 19~20mm | 89~90mm | 0.6mm | Pallet |
| Code | Rib depth | Rib distance | weight | Sheet size | Packing |
| MG-HR | 3/4" | 98mm | 11.9bls | 27" x97" | 250pcs/Plt |
| MG-HR3 | 19~20mm | 100mm | 200mm width | Pallet | |
| MG-HR4 | 19~20mm | 100mm | 300mm width | Pallet | |
| MG-HR5 | 19~20mm | 100mm | 400mm width | Pallet | |
| MG-HR6 | 19~20mm | 100mm | 500mm width | Pallet | |
| MG-HR7 | 19~20mm | 100mm | 600mm width | Pallet | |
| MG-HR8 | 19~20mm | 100mm | 700mm width | Pallet |
